IV Catheters
Outline

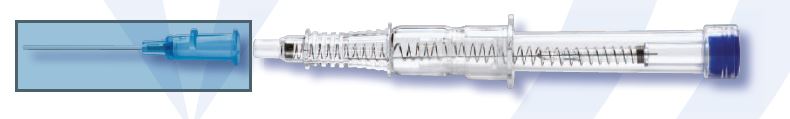

A safety IV catheter featuring the patented VanishPoint automated retraction!
Features |
- Push-off tab facilitates one handed advancement and indicates bevel orientation
- Clear finger grips and flash back chamber allow for handling ease and flashback visualization
- Sharp introducer needle for insertion ease and patient comfort
- Color coded on both catheter hub and housing
- Automatic needle retraction occurs with slight depression of the needle housing. once activated, the needle is safely retracted into the housing, reducing the risk of needlestick injuries
Benefits |
- Minimizes exposure to the contaminated needle
- Allows for one-handed activation
- Integrated safety mechanism
- Once activated, the needle is safely retracted through disposal
- Easy to use
Sizes |
Code Gauge Length Material Color
31221 24 ¾” Radiopaque PUR Yellow
35221 24 ¾” Radiopaque FEP Yellow
31331 22 1″ Radiopaque PUR Blue
35331 22 1″ Radiopaque FEP Blue
31441 20 1 ¼” Radiopaque PUR Pink
35441 20 1 ¼” Radiopaque FEP Pink
31541 18 1 ¼” Radiopaque PUR Green
35541 18 1 ¼” Radiopaque FEP Green
31641 16 1 ¼” Radiopaque PUR Grey
35641 16 1 ¼” Radiopaque FEP Grey
31741 14 1 ¼” Radiopaque PUR Orange
35741 14 1 ¼” Radiopaque FEP Orange
